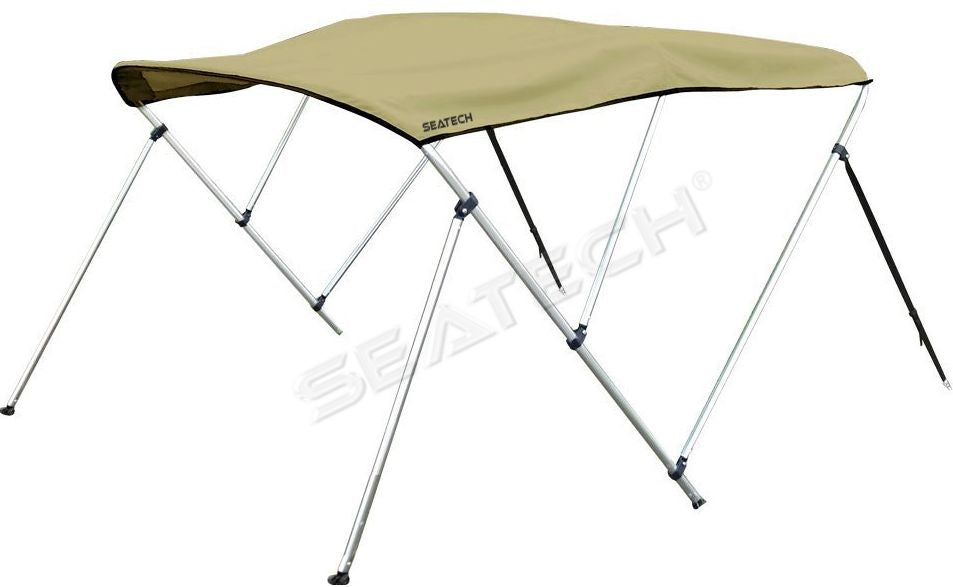

Seatech 3 Bow Bimini Top Alu 218-226cm x 118cm
Seatech 3-Bow Bimini Top Standard / Comfort
- for all boats up to 75 km/h (47 mph) -
3-bow aluminum frame
Rear support poles
Sun canopy UV 50+ protection factor
Sewn-in zippers for Comfort version
Cover - protective cover with zipper
Mounting kit
Seatech 3-Bow Bimini Top Standard / Comfort
For all boats up to 75 km/h (47 mph)
Mounting width: 218 - 230cm (85"- 90")- Length: 183cm (6.0`)
- Height: 118cm (46")
- Frame T6061 polished aluminum
- Rear support poles
- Tube Ø: 25mm
- Tube thickness: 1.4mm reinforced
- Joints + plastic holders
- Tested up to 75km/h (47mph)
Description
- Snug fit, wave and wrinkle-free
- Rear support poles fold down as a radar arch - freestanding
- Quick disassembly for trailering (twist lock)
- Can be folded forward & backward
- Tension straps -length- adjustable
- Sturdy Bimini Top suitable for fresh/saltwater use
- Durable and high quality
Features
Seatech Bimini Tops can remain open or folded as a radar arch
during planing due to their high stability and high-quality
workmanship.
Mounting
-
Onboard
Mounting on the upper deck (holders included) - Windshield frame - screwed to the windshield frame (like onboard holders)
- Side panel (side - included)
- Rail mounting clamp - (Optional)
Bimini Top Fabric Quality
- UV50+ protection factor
- 600D Oxford Vinyl Fabric
- Waterproof and weather-resistant
- Original boat fabric UV50+
- Long-lasting colorfastness
UV 50+ indicates the maximum protection against ultraviolet
rays (sunlight). UV indicates how much sunlight is absorbed
by the fabric. A fabric with a protection factor
of 50+ only allows 1/50th of UV rays to pass through the fabric.
The colorfastness therefore lasts 50 times longer than with conventional
fabrics.
Standard or Comfort
The Bimini Top is available in 2 versions: Standard and Comfort.
The Comfort version has four zippers sewn into the inside
of the Bimini Top. The corresponding counterparts are included.
The Comfort version is intended for customers who also
want to sew side, front, or rear parts. We offer the fabric in
our shop. Otherwise, Standard and Comfort are absolutely identical.
Scope of delivery
- Seatech Bimini Top
- Standard or Comfort
- 3-Bow frame 25mm
- Complete set with aluminum frame
- Size according to description
- Bimini Top canvas
- Cover - protective cover
- 600D Oxford Vinyl fabric - robust -
- UV50+ protection factor
- Rear support poles
- Front tension straps
- Mounting kit hard plastic and stainless steel
- Mounting instructions
